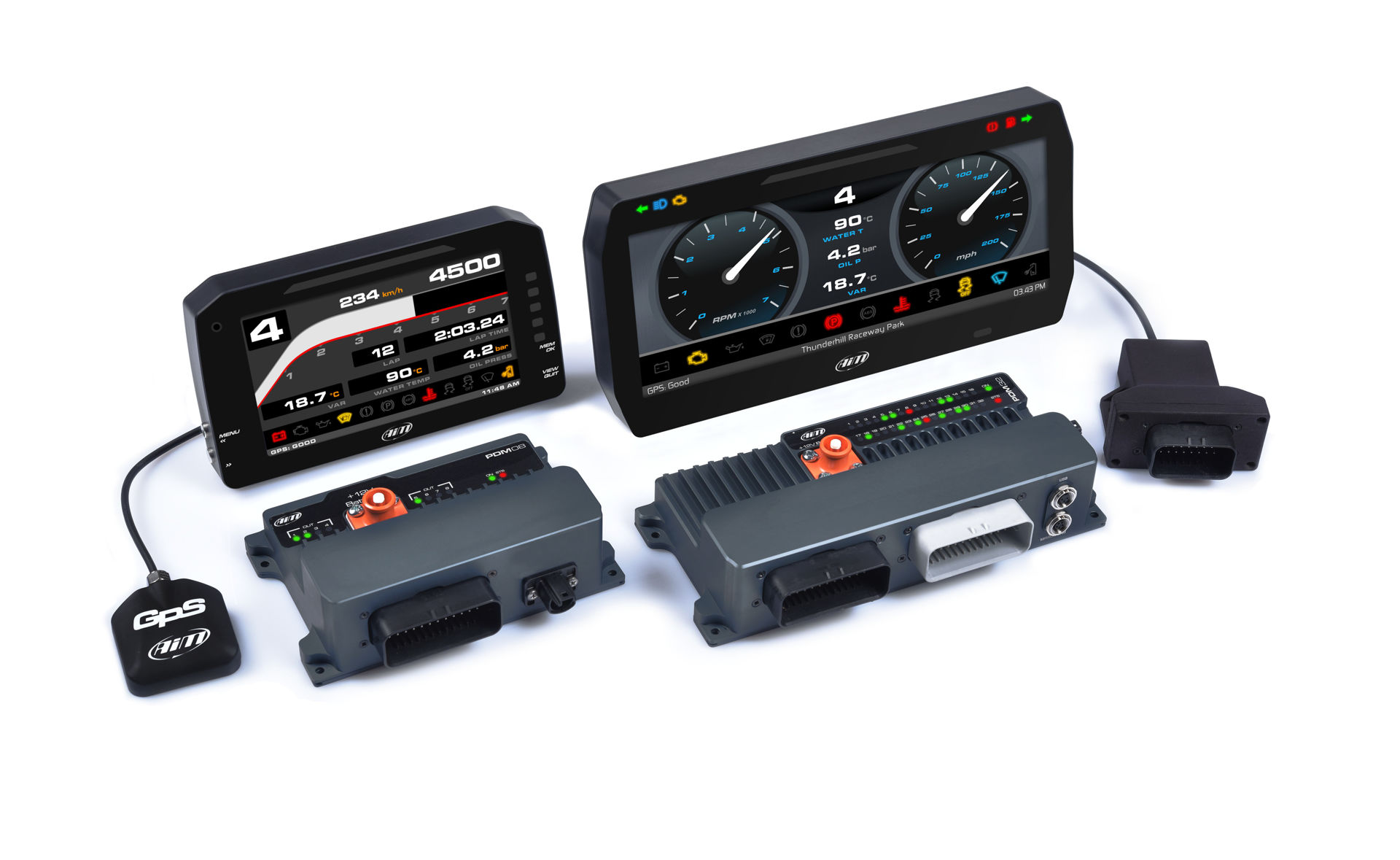

AiM PDM32 w/6″ Display, 4.0M Roof GPS
$2,899.00
Fuses? Relays? Not anymore. If you’re rewiring your entire car, you better be starting with a PDM. And AIM makes this easy by combining their easy to use dash and PDM kit. The PDM Kit includes: New INTEGRATED Power Distribution Module + PDM32 with 28 High Side Outputs and 4 Half Bridge Outputs + 4 gigabytes Datalogger + Dash controller Dash 6” (No Icons) GPS Module for automatic Lap Time and track position
| Power Outputs PDM32 |
4 rated up to 20 A (high power)
12 rated up to 15 A (mid power) 12 rated up to 10 A (low power) 4 rated up to 35 A (Half Bridge) Protected for: over voltage, under voltage, over current, over temperature Total max current: 120 A |
Technical specifications-
Weight 761g Dimensions 234.5 x 94.6 x 49.5 mm Body Anodized Aluminum Connectors 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector External Analog Camera input 2 SmartyCam HD, Formula Steering Wheel, Remote I/O pushbutton module External modules GPS Module, Channel Expansion, TC Hub, Lambda Controller, Internal memory 4 GB Inertial platform 3 axis ±5G accelerometer + 3axis gyro + 3 axis magnetometer CAN connections 3 Lin bus 1 Total max current: 120 A 4 rated up to 20 A (high side) 12 rated up to 15 A (high side) 12 rated up to 10 A (high side) 4 rated up to 35 A (high side/half bridge/low side/configurable PWM at max 10 KHz) Protected for: over voltage, under voltage, short circuit, over current, over temperature Power outputs 4 digital inputs 2 speed inputs 8 analog (0-5V ; 0-12V)/digital inputs Inputs 14 fully configurable, recorded at max 500 Hz each: LEDs 32 RGB LEDs + 1 PDM ON + 1PDM STS (Status)
